5347-L Micro Digital Inclinometer

Characteristic and Function

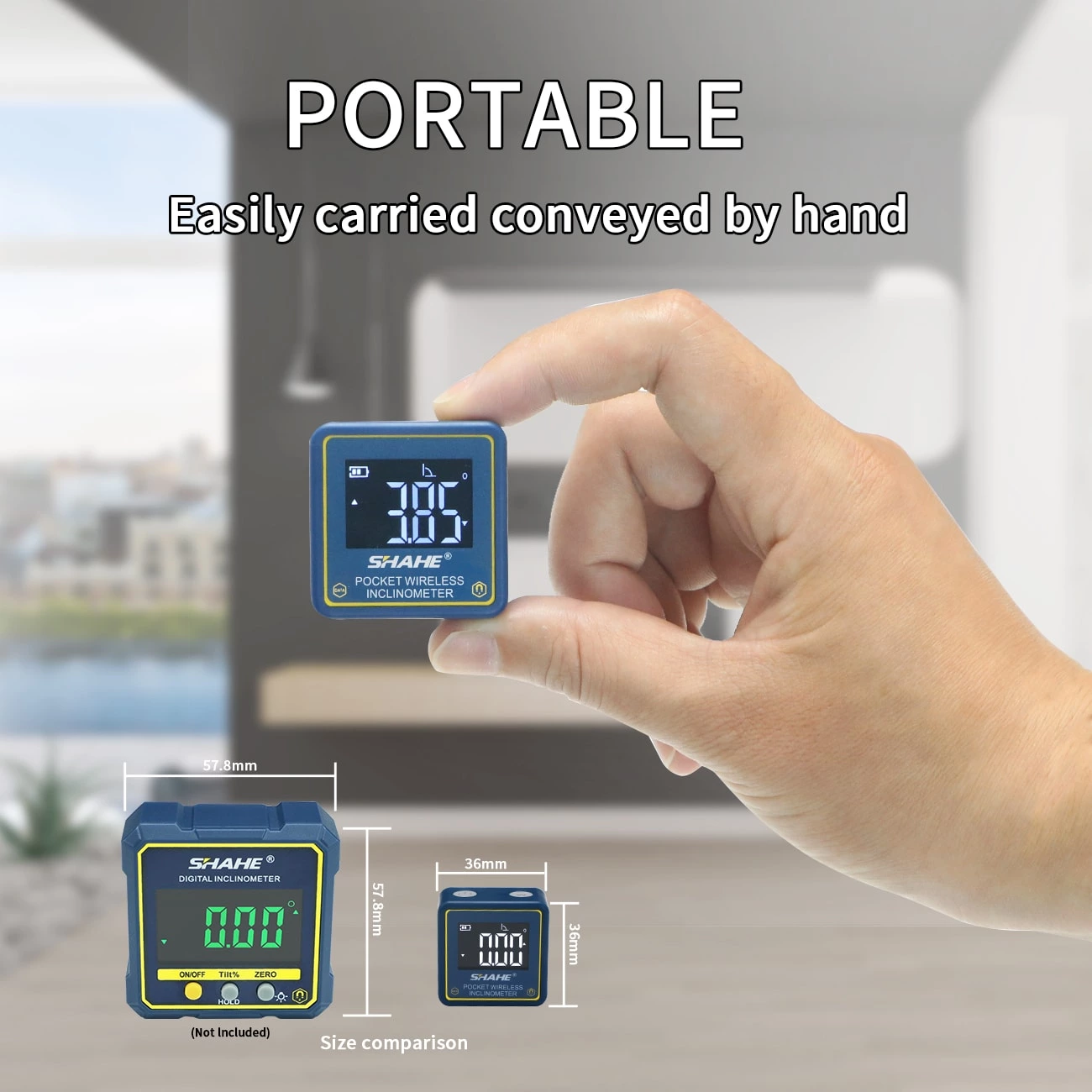

1.Plastic material,lightweight and portable,easy to control with one hand

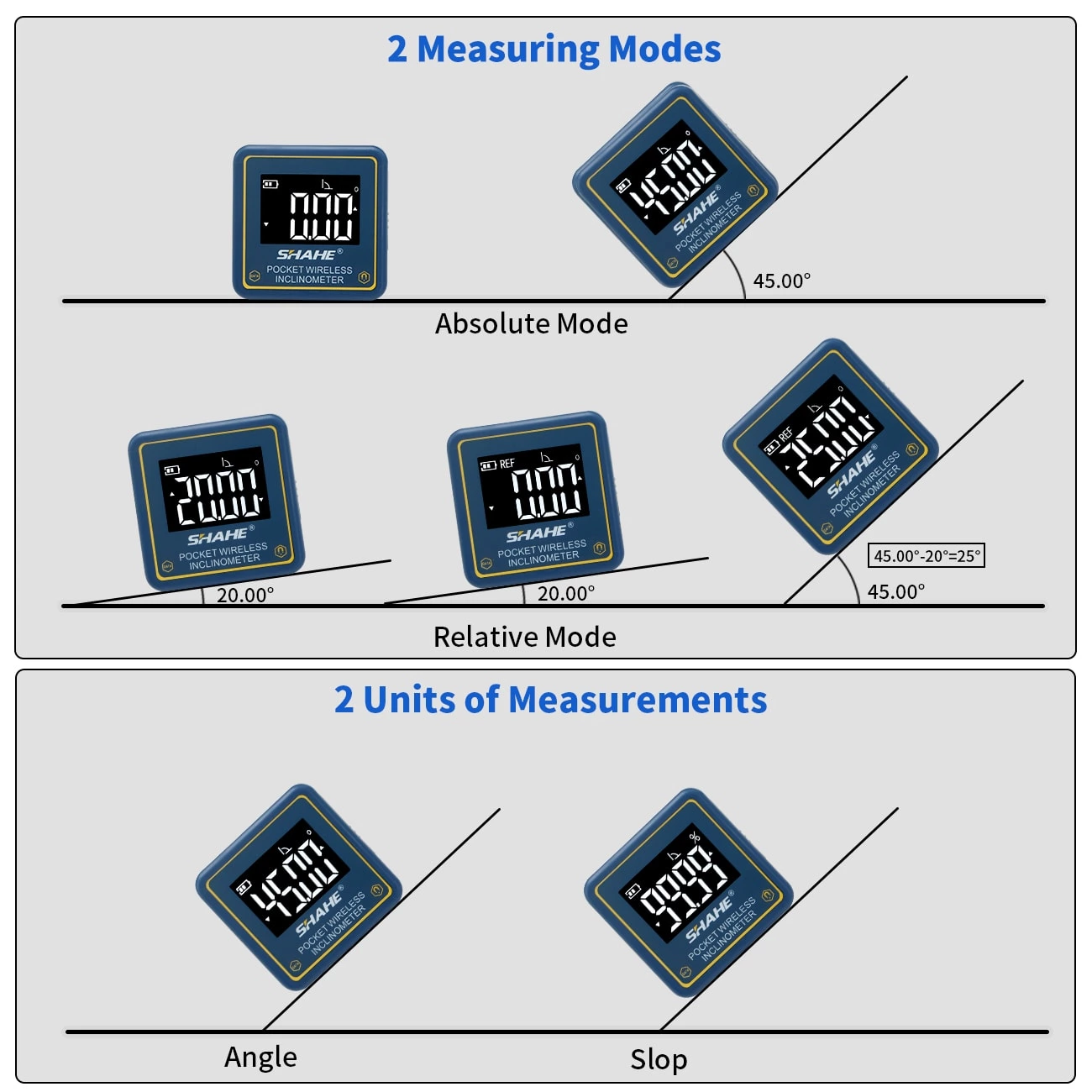

2.Two measuring mode:absolute angle and relative angle,easy to operate

3.Two unit conversion key:angle/slope

4.Data hold, the current measurement value can be held on the display by short pressing the HOLD button

5.Automatic power off after 3 minutes inactivity to save battery life

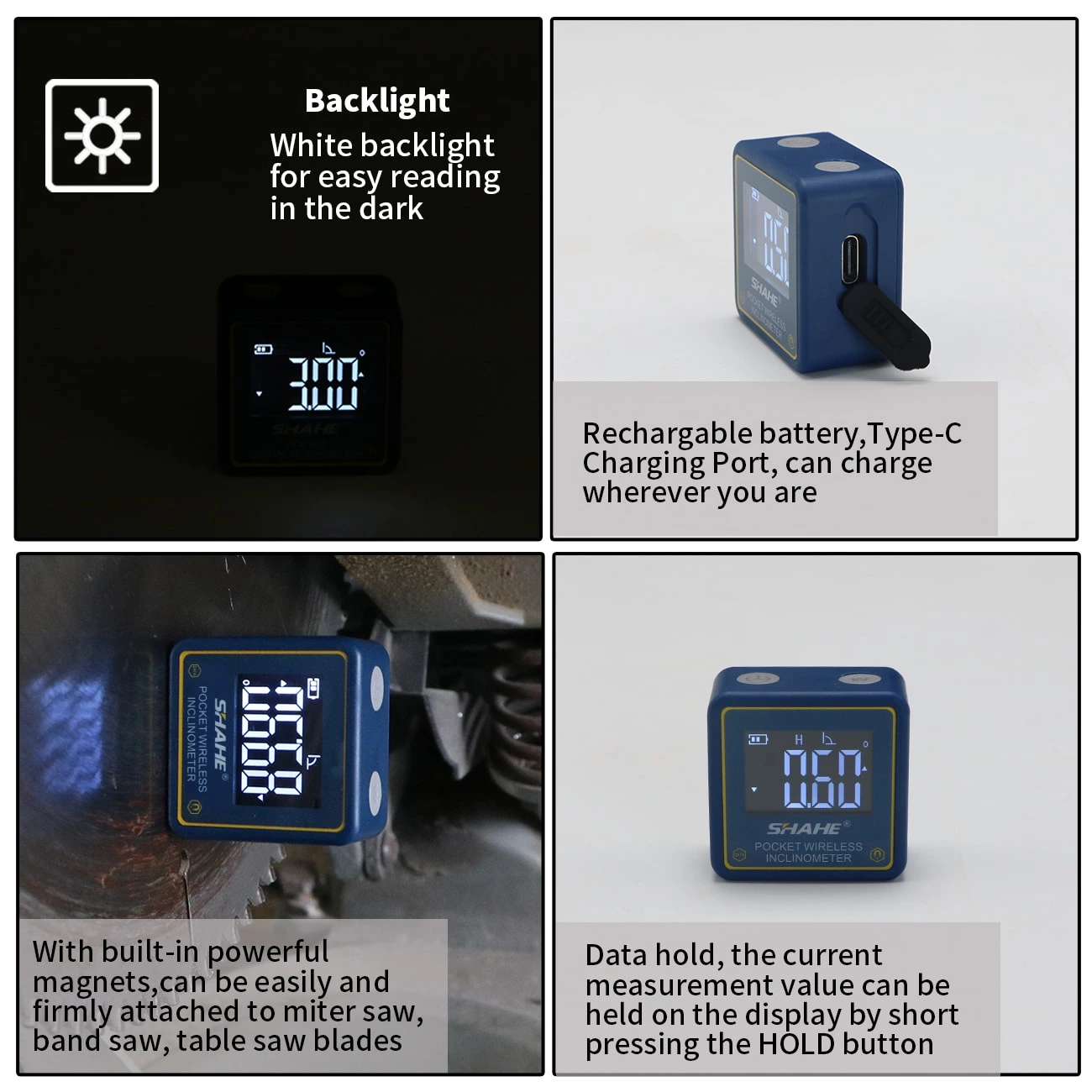

6.With built-in powerful magnets,can be easily and firmly attached to miter saw, band saw, table saw blades,

7.Large LCD with backlight ,taking reading in dark space is too easy with backlight ,help work smoothly

8.Rechargable,Type-C Charging Port, can charge wherever you are

9.Backlight: it will be turned on automatically when it is turned on,and will be turned off  automatically after 30s of inactivity

Technical Parameter

1.Measuring range: 4*90°

2.Resolution: 0.05°

3.Accuracy: ±0.2°

4.Repeatability: 0.1°

5.Battery: Type C rechargable ,3.7V lithium battery

6.Working temperature: -10°C-50°C

7.Magnetized bottom make varoius stick-on measurements simple and accurate

8.Absolute zero measurement based on Level surface

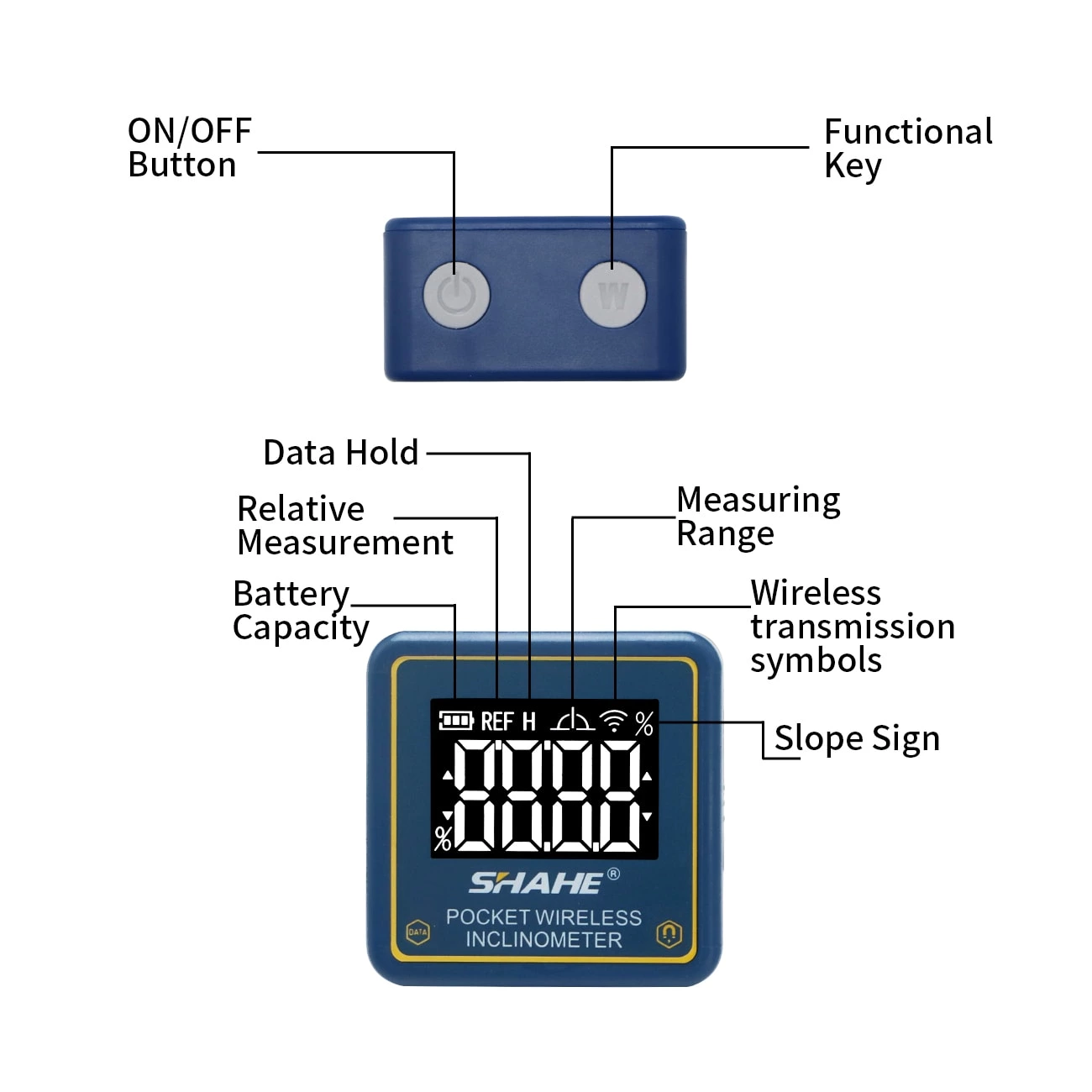

Button function

5347

5347-L
